SOLIDWORKS Visualize - A Virtual photo Studio

SOLIDWORKS Visualize is a virtual photo studio which enables you to create high resolution life like images, high definition animation videos, exterior and interior VR web content, one click 360 degree view of your design and also you can animate the rise and fall of sunlight over a specific timeframe so this will take product visualization to a whole new level, literally bringing your designs to life. SOLIDWORKS Visualize helps us to accelerate the approval process and deliver our products to the market faster than before.

Features:

• High-resolution detailed images (JPEG, TIF, PNG, BMP)
• Multiple configurations in seconds.
• Interactive web content (VR and panoramas)
• Captivating feature animations (MP4, FLV, MKV)
• Turntable animations.
• Interior and exterior Sun Studies.
• Detailed animations from your SOLIDWORKS Motion Studies.

Benefits:

• Eliminates the need for Physical Prototypes.
• Improve internal design, engineering, and sales reviews.
• Reduce the cost & time involved in making decisions earlier in the development process.
• Create immersive VR content for viral consumer experiences.
• Picture-perfect content allows you to stand out from the crowd and close more business.
• Deliver photo-quality imagery and content to marketing teams much earlier to help create final marketing layouts.



AUTOMATE PLC CONTROL DRAWING IN SOLDWORKS ELECTRICAL

PROGRAMMABLE LOGIC CONTROLLER

A PROGRAMMABLE LOGIC CONTROLLER (PLC) is an industrial computer control system that continuously monitors the state of input devices and makes decisions based upon a custom program to control the state of output devices.

PLC management

1. Open the PLC manager.

Menu: Project > PLCs

2. Click on the Add PLC icon and select the PLC manufacturer part option.

PLC manager > Add PLC > PLC manufacturer part.

3. Allocate the requested part.

Input/Output management

1. Select the PLC manager Inputs/Outputs command. PLC manager > Inputs/Outputs
2. Select the Add several Inputs/Outputs command using the Digital PLC Input option in the Input/Output manager.
3. Add 9 digital PLC inputs and 7 digital PLC outputs.

Associating Inputs/Outputs with PLC channels

1. In the PLC manager, select the 9 Digital PLC inputs and click on the Associate icon.

2. In the PLC manager, select the 9 Digital PLC inputs and click on the Select icon

3. Repeat this operation for the Digital PLC outputs.


Editing the macro associated with the circuit

1. Open the PLC drawing configuration.Menu: Project > Configurations > PLC drawing...
   Dockable panel > Contextual menu of Project: Configurations > PLC drawing configuration management.
2. In the configuration management dialog box, open the properties of the configuration used in the project
3. Go to the Circuits tab and in the Circuit type field select Digital PLC input.

4. The macro is automatically added to the dockable panel, Documents tab.
5. Unfold the macro in the dockable panel and open the document.
6. In the contextual menu for the symbol, select the Symbol > Replace command and select a pressure sensor symbol.

Generating PLC drawings:

1. Open the PLC manager
2. Select the Generate drawings command.
3. In the Book (s) / Folder(s) selection dialog box, select New folder and create the PLC folder.
4. Solidworks is now creating the drawing for the PLC for 9 inputs and 7 outputs



5. Select the folder.



6. Adding the PLC in SOLIDWORKS Electrical is completed and drawing are generated.

Benefits:

• Generate PLC drawings Automatically with the help of inbuilt macros
• Generates your control drawing with appropriate components
• Inbuilt manufacturer parts and PLC management tools saves time spend on control drawings
• Associated with the Schematic with GOTO commands with synchronised workflow
• Cross reference tools to audit PLC operations with Legends which eradicates errors



Business impact of data Management in Power & Process Industry

Product datamanagement (PDM) has to serve as a central knowledge repository for process and product history, and promotes integration & data exchange among all business users who interact with products — including project managers, engineers, sales people, buyers, and quality assurance teams. But its not happening in real-time environment.

Challenges faced in Power & process Industry:

A)Spending countless hours for the design approvals Engineering Change Orders (ECO)–more time to prepare and convey Engineering change notice (ECN) and getting approvals.

B)Has to maintain a whole Revision history of a design evolution,Errors of manual approaches to be captured and also Duplicate file creation has to stop.

C)Unable to collaborate with multiple location organizations

D)Difficult to deliver the right file, at right time to the right person

E) Difficult to Create, maintain, manipulate and store the Bill of Materials (BOM) data to support downstream operations.

Solutions:

A) By Automatic electronic workflow system in SolidWorks PDM,significantly reduce the time required for the design approvals of Engineering change orders (ECO).

B) SolidWorks PDM Track changes, maintain a whole revision history of a design’s evolution, and errors of manual approaches can be avoided and also helps to avoid creation of duplicate files .

C) SolidWorks PDM allows replicating the data from one location to another location without much effort.This global connectivity helps in reducing the time to market of product.

D) But with SolidWorks PDM, usingworkflow and transition action- data can assigned automatically to a right person at right time with notification

E) SolidWorks PDM software offers many tools which enables to handle BOM data more efficiently and also to export this data for the use in downstream applications.

Benefits:

• Achieve Intelligent Process automation
• Ability to Track Changes
• Helps in Process integration
• Smart BOM Management
• Error free Change management
• Enterprise Scalability for multiple Location access.



SOLIDWORKS Flow Simulation for Power & Process Heat Exchangers

Design Challenges Faced in Power and Process Industry

• Optimizing work flow for specialized domains such as piping, tubing and welding.
• Errors in design resulting in engineering rework and delays
• A bottleneck appears when overlooking a entire product which was developed under various CAD Software due to various constrains.
• Unexpected Failure faced at higher pressure operation.
• The life of the product not able to predict, due to that maintenance overtime and process productivity is critical.

Follow us on Social Media:

Facebook: https://www.facebook.com/Egscomputers
Twitter: https://twitter.com/egssolidworks
Linkedin: https://www.linkedin.com/in/egsindia/
Blogger: http://solidworksreselleregsindia.blogspot.in/

Subscribe our channel for more tech updates

For more Queries reach us
mktg@egs.co.in | 9445424704
http://www.egsindia.com/ | http://www.egs.co.in/

SOLIDWORKS Solutions for Mold, Tools and Die Design

SOLIDWORKS functionality for mold, tools and die design will access multiple CAD files without data loss and check manufacturing feasibility. Die design with ease of use tools and instant design changes without recreate.

Please visit www.egsindia.com or write to us at info@egs.co.in for knowing more.  If you like this presentation please do leave your feedback and refer to others for benefiting from the information provided in this presentation.


Follow us on Social Media:

Facebook: https://www.facebook.com/Egscomputers
Twitter: https://twitter.com/egssolidworks
Linkedin: https://www.linkedin.com/in/egsindia/
Blogger: http://solidworksreselleregsindia.blogspot.in/

SOLIDWORKS SOLUTIONS FOR POWER AND PROCESS

Design Challenges Faced in Power and Process Industry

1. Optimizing work flow for specialized domains such as piping, tubing and welding.
2. Errors in design resulting in engineering rework and delays
3. A bottleneck appears when overlooking a entire product which was developed under various CAD Software due to various constrains
4. Unexpected Failure faced at higher pressure operation
5. The life of the product not able to predict, due to that maintenance overtime and process productivity is critical

Addressing these Challenge through SOLIDWORKS Solutions.

1. In SolidWorks we don’t need to spend our time on designing standard parts and components, where all the standard components are available in design library itself which can be obtained by simple drag and drop. For further validation of the product those standard can be directly fetched in SolidWorks Simulation.



Fig1: Design Library

2. SOLIDWORKS helps to eliminate the rework in design process by using design table automation, DriveworksXpress and customized integrated automation solutions.
3. Now with SOLIDWORKS you can import and export different types of cad files and neutral file formats.

Fig2:supported File Formats

4. Failure can be avoided by predicting different pressure operation at various temperatures for the given Product in the development Stage itself.

Fig3:Displacement analysis

5. The life and damage of the product would be predicted depending upon its working cycle over a period of time. Through the process, we can pre-schedule maintenance so that process productivity will be efficient.

Fig4: Fatigue analysis

Benefits of SOLIDWORKS using Power &Process industry

• Eliminate reworks and save your time.
• Reduce development cost & overall cast of the design.
• Easily automated the layout design in full plant
• The repeated documentation can be reduced.
• Validation of designs for efficiency and performance.

Customer Voice:

“We spent so much time trying to communicate design intent in 2D drawings—time that is completely eliminated when you present a realistic 3D rendering of a concept using SOLIDWORKS”

- Gary Hager

Senior Project Manager/Engineer



How to Control Electrical Panel Cost ?

Cost Management for Electrical Panels is presented in this Webinar Video. Digital Transformation with Design for Cost, Checklist based Design, Process driven approach to Cost Management with Integrated Product Life Cycle Management is emphasized. SOLIDWORKS Electrical is used as the tool along with SOLIDWORKS PDM for enumerating the process driven approach to Cost Engineering as applied to Electrical Panel Design and Development. Please visit www.egsindia.com or write to us at info@egs.co.in for knowing more. If you like this presentation please do leave your feedback and refer to others for benefiting from the information provided in this presentation. Follow us on Social Media: Facebook: https://www.facebook.com/Egscomputers Twitter: https://twitter.com/egssolidworks Linkedin: https://www.linkedin.com/in/egsindia/ Blogger: http://solidworksreselleregsindia.blogspot.in/

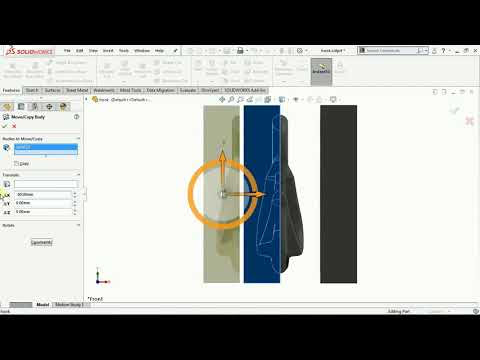

Mould Design Using Multibody Concept in SOLIDWORKS

Watch Demo on how Mutlibody Concept in SOLIDWORKS helps Tool & Die Designing effectively for Mould Industry.

If you like this video give a like & Share with your friends.

Follow us on Social Media:

Facebook: https://www.facebook.com/Egscomputers
Twitter: https://twitter.com/egssolidworks
Linkedin: https://www.linkedin.com/in/egsindia/
Blogger: http://solidworksreselleregsindia.blogspot.in/

Subscribe our channel for more tech updates

For more Queries reach us
mktg@egs.co.in | 9445424704
http://www.egsindia.com/ | http://www.egs.co.in/

Data Handling & Product Communication in Automotive Sectors

This Video talks about how to have better workflow of Engineering design data in Automotive Industry through effective Product Data Management tools - SOLIDWORKS PDM. If you like this video give a like & Share with your friends. Follow us on Social Media: Facebook: https://www.facebook.com/Egscomputers Twitter: https://twitter.com/egssolidworks Linkedin: https://www.linkedin.com/in/egsindia/
Blogger: http://solidworksreselleregsindia.blogspot.in/ Subscribe our channel for more tech updates For more Queries reach us mktg@egs.co.in | 9445424704 http://www.egsindia.com/ | http://www.egs.co.in/



Integration of SOLIDWORKS Revision Table with SOLIDWORKS PDM

SOLIDWORKS PDM 2018 can now read and write values from or to a SOLIDWORKS revision table. You can configure SOLIDWORKS PDM variables to automatically add information such as revision date, description, and approver to a new row in the table or to update the last row.

Step 1: Configure Revision Table Integration

1. In the administration tool, expand SOLIDWORKS and open the Revision Table node.

2. Enable the check box “Enable Revision Table”

1. Set the number of visible rows in the revision table.
2. Enter the place holder text you wish to be shown when you manually add a new revision table row in SOLIDWORKS.

Step 2: Mapping variables to the Revision Table

Each revision table column that you wish to update via PDM must be mapped to data card variable.

To configure the variable mapping:

1. In the administration tool,expand the variable node.
2. Select the variable to update.
3. Click “New Attribute”
4. Add a new block named “SWRevTable”
5. The “Attribute Name” field will switch to a drop list,listing the five default revision table columns.Select the appropriate attribute that should be mapped to the variable.
6. Type “slddrw” in the extension field.

When you change the mapped variable values in the file's data card, the values in the latest row of the table are updated and vice versa.

Step 3: Automatically update revision table row

The revision table row can be updated automatically by two methods:

1. Set Variable transition actions.
2. Set Revision command.

Step 3.1: Configure the workflow to automatically update revision table row

The revision table in a drawing can be updated via workflow transition actions that update variables mapped to the “SWRevTable” block.

1.In the administration tool,expand the workflow node and open the appropriate workflow.

2.Select the transition that is used to set a revision on the drawing.

3.Add a “Set variable” transition action that updates the variable linked to the SWRevTable mapping for the Revision column in the revision table.

Add “Set Variable” actions for each revision table column that you wish to update at the same time the revision is set.

Step 3.2:Configure Set Revision command to automatically update revision table row

To update the revision table via the manual “Set Revision” command

1. In the administration tool,expand SOLIDWORKS and open the “Revision Table” node.
2. Select the “Set Revision Command Settings tab”.
3. Enable the check box “Update Revision Table in SOLIDWORKS Drawing through “Set Revision” command

To update the “Revision” column in the revision table,enable the check box

The revision column will use the revision value that the Set Revision command sets on the file.

The “Variable Name” drop list will display all variables that have a “SWRevTable” mapping.Select the variable that contains the revision value on the drawing Data card.

To update the other column(Description, Date, Approver) enable the checkbox and In “Column Value”,enter a static text or select from the options in the drop list what value the revision table column should be updated with.

Note: The command will only add a new revision row with the values when you use the “Update Variable” option in the Set Revision command.
